GFCF25UFL
HUIDA PACK MACHINERY

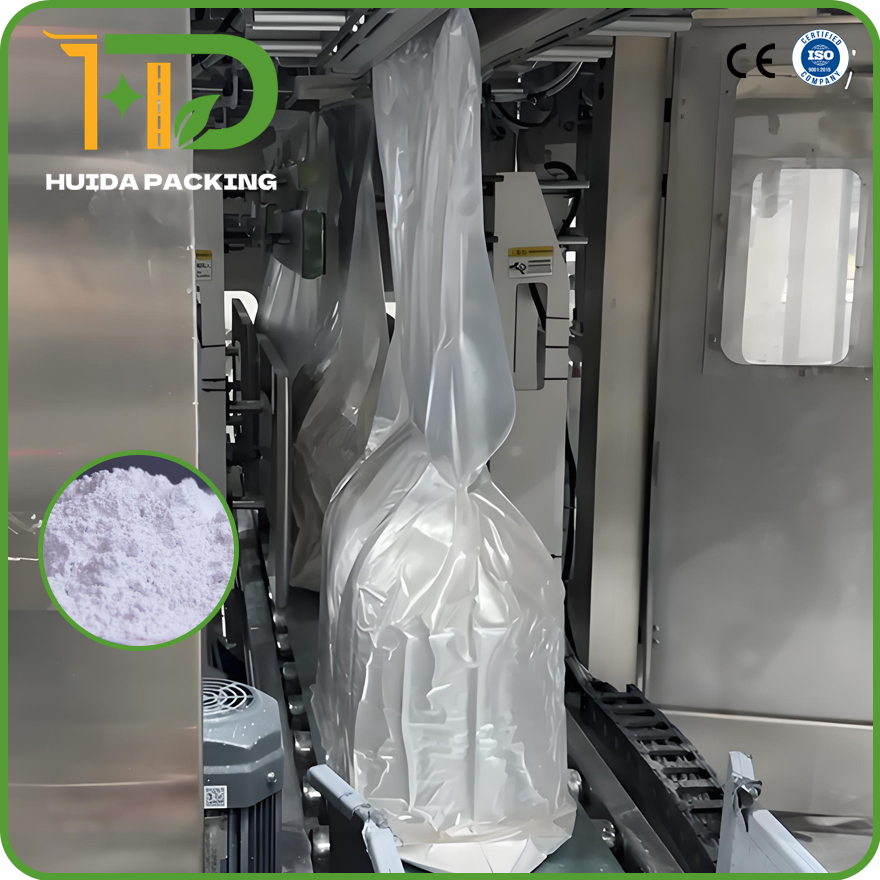

The HUIDA PACKING Automatic Ultra-Fine Powder Vacuum Packaging Machine is specially designed for lightweight, low-density, high-air-content and fluffy powder materials that tend to retain air during filling. It integrates automatic bag feeding, bag loading, filling, deaeration, vacuum air extraction, bag sealing and automatic bag discharge into one highly automated packaging system.

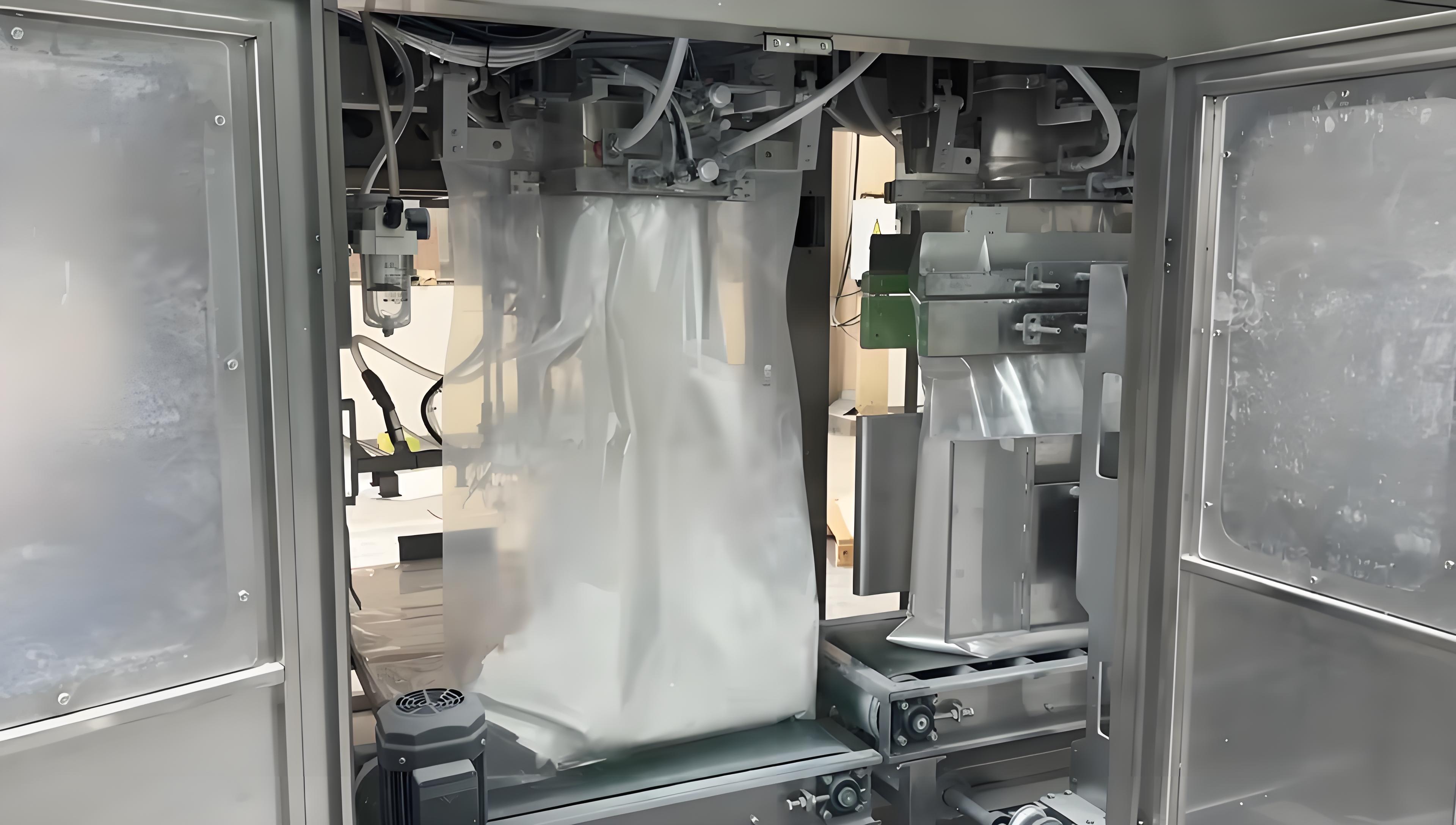

Featuring a dual-station high-efficiency air extraction system, the machine effectively removes air entrained within the powder during filling, helping prevent bag swelling and bulging while significantly reducing the packed bag volume. The dual-station alternating operation ensures continuous and stable production, making it ideal for demanding ultra-fine powder packaging applications.
The system can be equipped with net-weight weighing systems, horizontal screw feeders or vertical screw feeding systems according to different material characteristics and production requirements. Its modular design allows flexible integration with various dosing and feeding units, providing a complete solution for automatic weighing, filling, deaeration and sealing of ultra-fine powders.

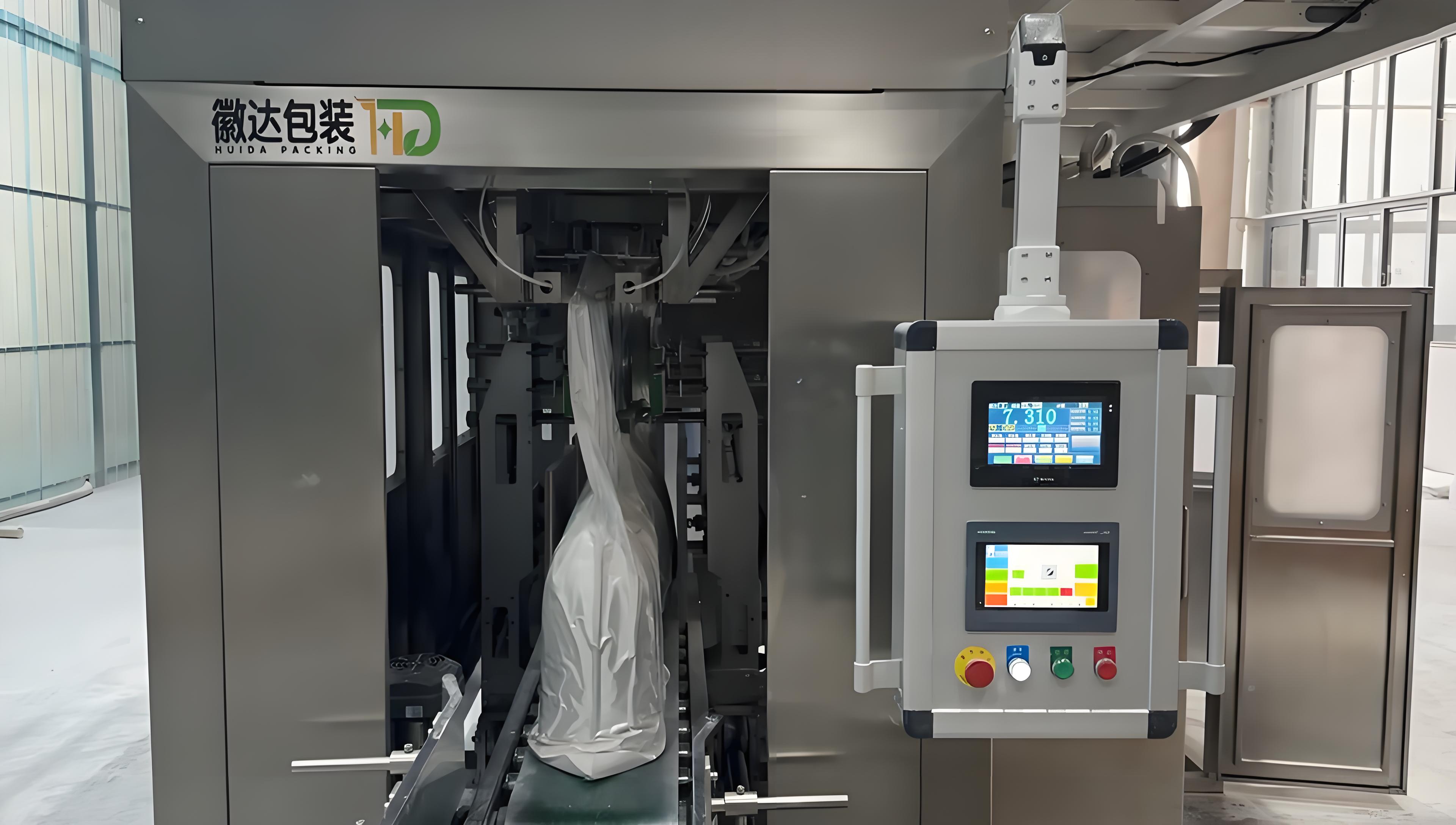

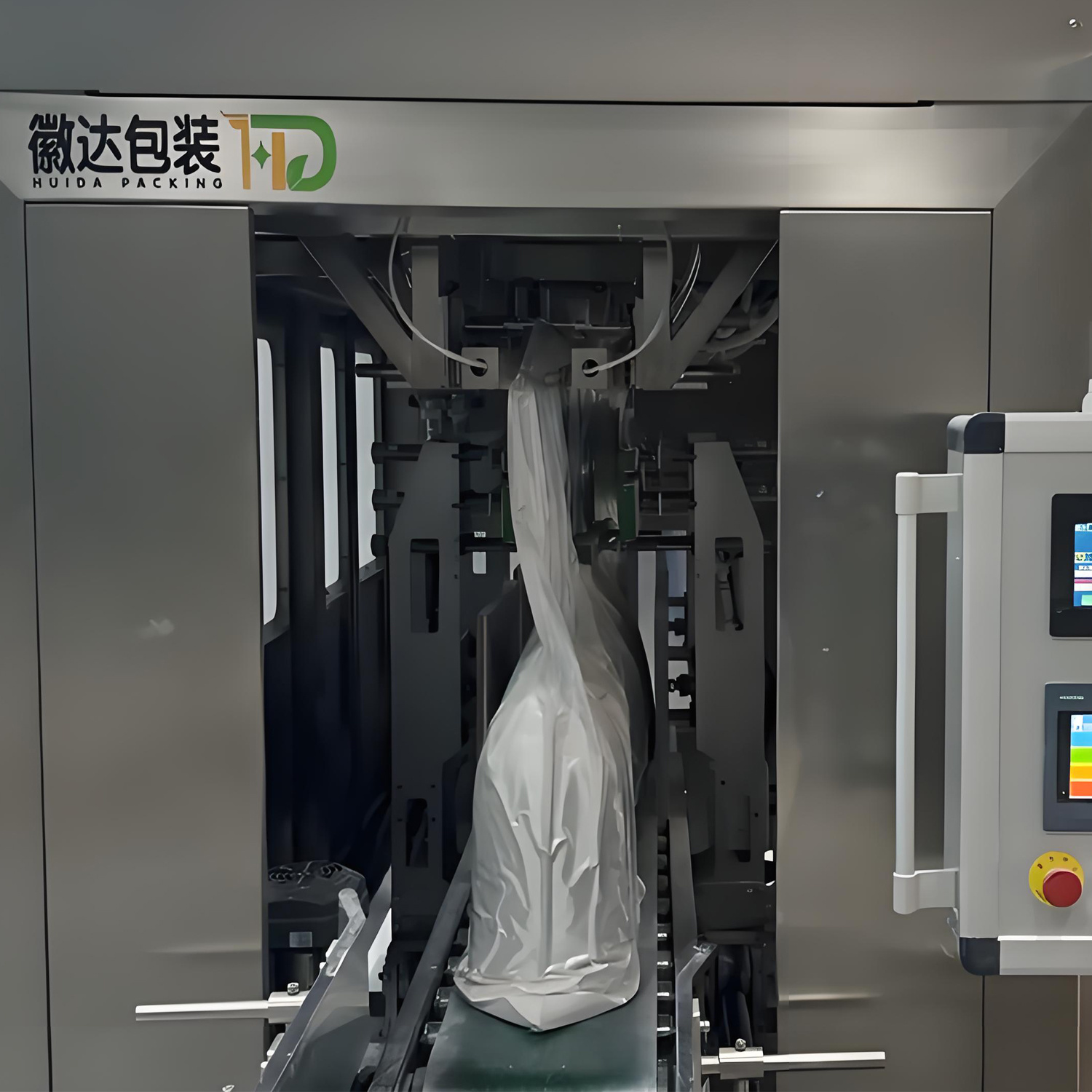

GFCF25UFL automatic ultra-fine powder open mouth bag vacuum packaging machine.
Machine introduction
The 25kg fully automatic open-mouth bag packaging machine is designed for packaging ultra-fine powder with a particle size of less than 150 microns.This machine is equipped with material air exhaust which can effectively collect the dust generated during the filling process to ensure the cleanliness of the working environment and material accuracy.
In addition, this is a reliable and efficient solution for performing compact and flat bag .Which is desired package used on palletizing.
| Model | GFCF25UFL |
| Applicable scope | Powdery material(less than 100um) Eg: nacre powder, pearlescent powder, flame retardant powder and so on. |
| Packaging weight | 25kg |
| Measuring accuracy | 0.50% |
| Way of auger filling | Horizontal auger feeding with scale (equipped with lift air exhaust system) |
| Packaging speed | 2-4bags/min |
| Bag size | 580-900mm (can be design according to customer bag size) |
| Bag material | PE bag |
| Sealing type | heat sealing |
