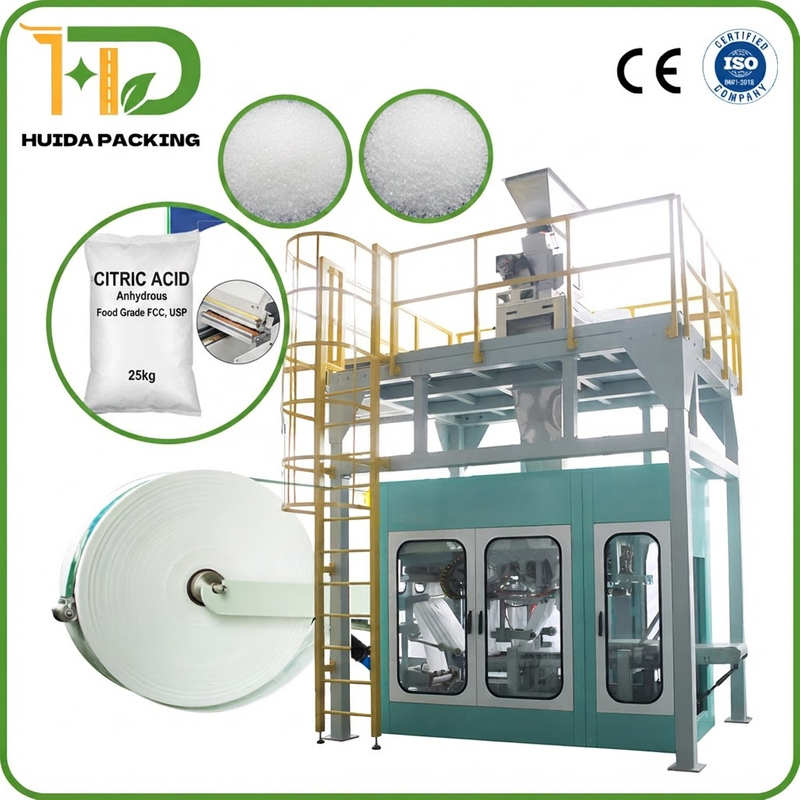

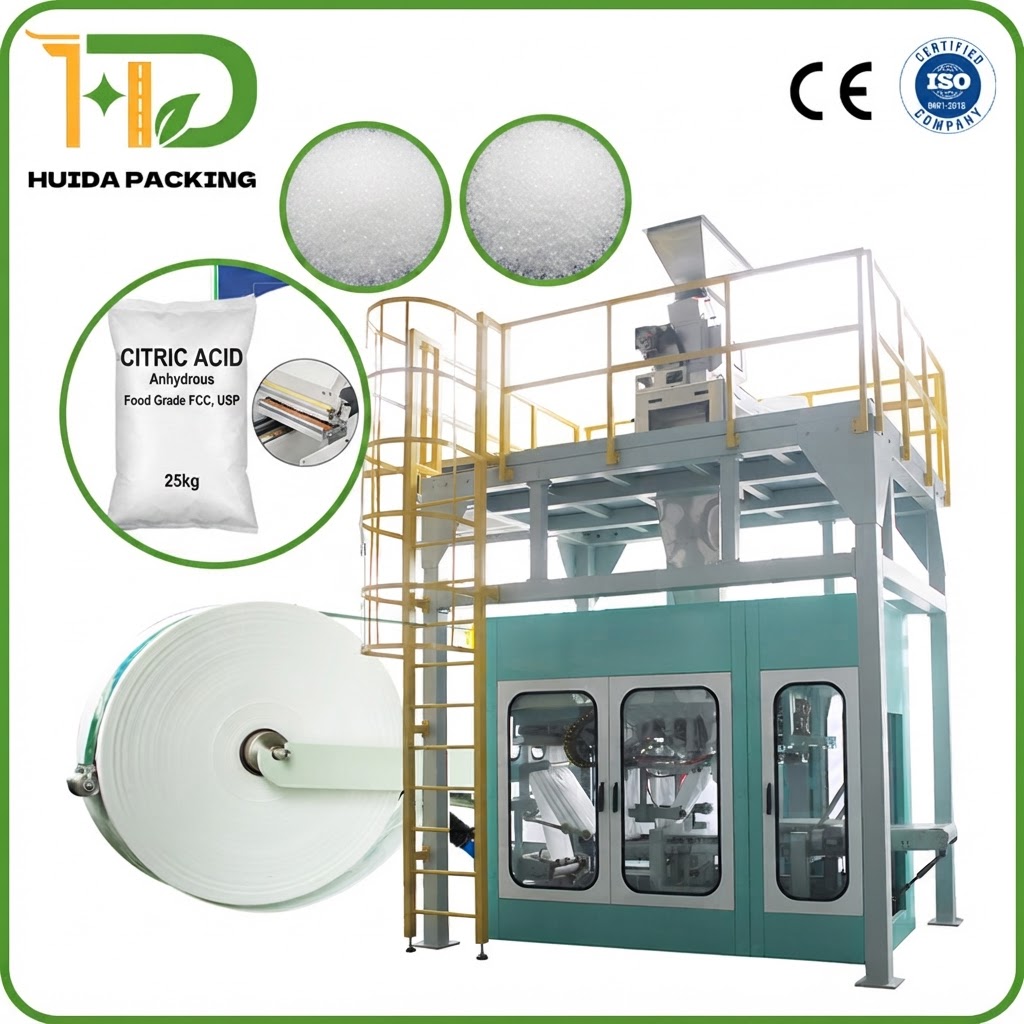

Automatic Tubular FFS Bagging Machine Heavy Duty Form Fill and Seal Packaging System for Citric Acid Chemical Granules 25kg–50kg

HUIDA PACKING | Heavy-Duty Automatic FFS Bagging Machine | Up to 1800 Bags/Hour

HUIDA PACKING's Automatic Tubular FFS Bagging Machine is a heavy-duty form fill and seal packaging system designed for high-volume industrial packaging of citric acid, chemical granules, fertilizers, mineral products, plastic granules, feed materials and other free-flowing bulk solids.

The system automatically forms, fills and heat-seals bags from a continuous tubular PE film roll, eliminating the need for pre-made bags and significantly reducing manual packaging operations.

Designed for 25kg–50kg heavy bag applications, the high-speed configuration can achieve up to 1800 bags/hour, depending on product characteristics, bag size, film specifications and feeding/weighing configuration.

Key Product Highlights

• Packaging Weight: 25kg–50kg per bag

• Maximum Capacity: Up to 1800 bags/hour

• Bag Making System: Tubular PE film

• Packaging Technology: FFS — Form, Fill & Seal

• Application: Citric acid, chemical granules, fertilizers, minerals, plastic granules, feed and other bulk solids

• Operation: Fully automatic

• Bag Type: Pillow bag / gusseted bag options

• Film: Heavy-duty PE tubular film

• Process: Film forming → filling → sealing → finished bag discharge

• Optional: Automatic palletizing, stretch wrapping, check weighing, metal detection and conveying systems

High-Speed FFS Packaging for Citric Acid

Citric acid is commonly supplied and transported in industrial quantities, making packaging speed, weighing accuracy, sealing quality and bag durability important factors for chemical manufacturers and exporters.

HUIDA PACKING's tubular FFS system provides a continuous packaging process in which the machine automatically creates the bag from a tubular PE film roll, fills the predetermined quantity of citric acid and heat-seals the finished bag.

This integrated process helps reduce manual bag handling while maintaining consistent package dimensions and sealing performance.

HUIDA PACKING has already developed FFS packaging solutions for 25kg citric acid applications, demonstrating the suitability of tubular FFS technology for this type of chemical material.

Why Use Tubular FFS for 25kg–50kg Chemical Granules?

1. Fully Automatic Bag Forming

Unlike traditional open-mouth bagging systems, the FFS machine produces bags directly from a continuous tubular film roll.

There is no need to manually supply empty bags one by one.

2. High-Speed Continuous Packaging

For high-output chemical production lines, packaging speed is critical.

The high-speed configuration is designed for production requirements of up to 1800 bags/hour, helping chemical plants increase packaging throughput and reduce bottlenecks between production and warehouse operations.

3. Heavy-Duty Bag Construction

The system is designed for heavy industrial bags ranging from 25kg to 50kg.

Heavy-duty PE film can provide strong mechanical protection during conveying, palletizing, transportation and storage.

4. Consistent Filling Weight

The weighing and filling system is engineered for continuous quantitative packaging.

The final weighing configuration can be selected according to the product's bulk density, particle size, flow characteristics and required accuracy.

5. Automatic Heat Sealing

After filling, the bag is automatically sealed by the FFS sealing system.

This produces a consistent top seal and reduces the risk of inconsistent manual sealing.

6. Reduced Labor Requirements

The automated process integrates:

Bag forming + weighing + filling + sealing + conveying

This can substantially reduce the number of operators required compared with conventional manual bagging processes.

Packaging Process

The complete FFS packaging cycle is:

Tubular Film Feeding

↓

Film Positioning

↓

Bag Forming

↓

Bag Bottom Sealing

↓

Automatic Weighing

↓

High-Speed Filling

↓

Bag De-Aeration

↓

Top Heat Sealing

↓

Finished Bag Discharge

↓

Conveying to Palletizing

The system can be integrated with downstream robotic palletizing and stretch wrapping equipment to create a complete automatic packaging line.

Suitable Materials

The HUIDA PACKING heavy-duty FFS system can be configured for a wide range of free-flowing powders and granules, including:

• Citric Acid

• Chemical Granules

• Fertilizer Granules

• Urea

• NPK Fertilizer

• Ammonium Sulfate

• Potassium Chloride

• Plastic Granules

• Resin Granules

• Mineral Products

• Salt

• Animal Feed

• Biomass Pellets

• Other Free-Flowing Bulk Materials

FFS technology is particularly suitable for bulk materials that require continuous automated bag formation, filling and sealing. HUIDA's existing FFS range covers chemicals, fertilizers, minerals, granules, pellets and other bulk solids.

Technical Specifications

Note: Actual production capacity depends on product characteristics, target weight, film specifications, bag dimensions, feeding system and line configuration. The 1800 bags/hour figure represents the maximum capacity of the applicable high-speed configuration and should be confirmed based on the customer's material and packaging requirements.

Heavy-Duty FFS System for Chemical Plants

For chemical manufacturers, the packaging machine must operate reliably for long production cycles.

HUIDA PACKING's heavy-duty FFS solution is designed around industrial requirements including:

Continuous Production

Designed for high-volume packaging environments and long operating cycles.

Stable Film Handling

The tubular film feeding system continuously unwinds and positions the film before bag forming.

Automatic Bag Length Control

Bag length can be controlled according to the packaging specification, with automatic detection and adjustment options.

Easy Maintenance

The machine structure provides access to key operating and maintenance components, helping reduce maintenance downtime.

Dust Management Options

For dusty chemical materials, dust extraction and air evacuation systems can be configured according to the characteristics of the product.

Flexible Integration

The FFS bagger can be integrated with upstream material handling and downstream conveying, palletizing and wrapping equipment.

Complete Automatic Packaging Line

For large chemical production plants, HUIDA PACKING can provide a complete automated packaging solution rather than only the bagging machine.

A typical line can include:

Raw Material Feeding System

→

Buffer Hopper

→

Automatic Weighing System

→

Tubular FFS Bagging Machine

→

Finished Bag Conveyor

→

Check Weigher

→

Metal Detector

→

Automatic Reject System

→

Robotic Palletizer

→

Automatic Stretch Wrapper

→

Finished Pallet Conveyor

This configuration can create a continuous packaging workflow from bulk material feeding to palletized finished products.

Benefits for Chemical Manufacturers

Higher Packaging Productivity

High-speed automatic packaging can help increase production throughput and reduce packaging bottlenecks.

Lower Packaging Labor Cost

Automatic bag forming, filling and sealing reduces manual bag handling and operator dependency.

Flexible 25kg–50kg Packaging

The system can be engineered around different industrial bag weights and dimensions.

Better Packaging Consistency

Automatic weighing, film forming and heat sealing help maintain consistent bag quality.

Reduced Empty Bag Handling

Because bags are manufactured directly from tubular film, the system eliminates the traditional process of manually loading pre-made bags.

Easy Integration with Automation

The FFS system can be connected with conveyors, check weighers, robotic palletizers and stretch wrappers for complete line automation.

Why Choose HUIDA PACKING?

Professional FFS Packaging Manufacturer

HUIDA PACKING focuses on automatic industrial packaging machinery and complete packaging lines for chemicals, fertilizers, food ingredients, feed, minerals and other bulk materials.

Source Factory

As a machinery manufacturer, HUIDA PACKING can customize the packaging system according to the customer's product, bag specification, capacity and factory layout.

Engineering-Based Solutions

We do not simply supply a standard machine. The weighing system, feeding equipment, film specifications, sealing system and downstream automation can be configured according to the actual production requirements.

Complete Automation Capability

From feeding and weighing to bagging, conveying, palletizing and wrapping, HUIDA PACKING can provide a complete automatic packaging solution.

International Project Experience

HUIDA PACKING's FFS equipment has been applied to industrial packaging projects involving chemicals and other bulk materials, including citric acid packaging applications.

Frequently Asked Questions

What products can this FFS machine package?

It is suitable for free-flowing powders, granules, pellets and other bulk solids, including citric acid, fertilizers, chemical granules, minerals, plastic granules and feed.

Can it package 25kg and 50kg bags?

Yes. The system can be configured for 25kg–50kg packaging applications. The exact bag dimensions and film specifications should be confirmed according to the customer's product and packaging requirements.

Can the machine reach 1800 bags/hour?

The high-speed configuration can be designed for up to 1800 bags/hour. Actual capacity depends on material characteristics, filling weight, bag size, feeding system and operating conditions.

What film does the machine use?

The machine uses tubular PE film. Film thickness and structure should be selected according to the product, bag weight, transportation requirements and sealing performance.

Does the machine require pre-made bags?

No. The FFS system automatically forms bags from a continuous tubular film roll, fills the product and seals the finished bag.

Can the machine be connected to a palletizer?

Yes. HUIDA PACKING can integrate the FFS bagger with automatic conveying, robotic palletizing and stretch wrapping systems.

Can HUIDA PACKING customize the machine?

Yes. The packaging system can be customized according to product characteristics, bag weight, bag dimensions, required capacity, film specifications, factory layout and automation requirements.

Get a Customized FFS Packaging Solution

If you are looking for an automatic 25kg–50kg citric acid packaging machine, heavy-duty FFS bagging machine, or high-speed chemical granule packaging line, HUIDA PACKING can design a suitable solution according to your production requirements.

Please send us:

• Product name

• Product form: powder / granule / pellet

• Packaging weight

• Required bags/hour

• Bag dimensions

• Film specification

• Existing production line information

• Factory layout, if available

Our engineering team can then recommend the suitable FFS bagging machine, weighing system, feeding system and downstream automation configuration.

HUIDA PACKING — Automatic Packaging Solutions for Global Industries

Applicable scope:

The FFS Series is an affordable packaging system that can handle tubular form, fill, and seal applications for various production capacities and free-flowing materials. The machine can easily adjust to different bag lengths and widths, and it's simple to install and maintain with full access for control, adjustment, and maintenance.

Speed: up to 20 bags per minute (1200 bags per hour)

Bulk materials: fibers, flakes, granules, pellets, and powders

Bag types: pillow-bag

Features

Easy to use

·Easy calibration for gross weight system

·Tool less adjustments and basic maintenance

Simple design

·Bag de-areation, with labyrinth for air escape

·Easy cleaning spout

·Low power and air consumption

Versatile

·Length of bag detectable by photocell or encoder

·Automatic adjustment of the position of the K-sealing in function at the length of the bag

Options

·Teflon feeder for sealers

·Thermal printer module

·Air aspiration from the mouth of the bag

·Top air evacuation

·Film wheel support for a 2nd film roll with automatic positioning

·Option for welding system without Teflon
