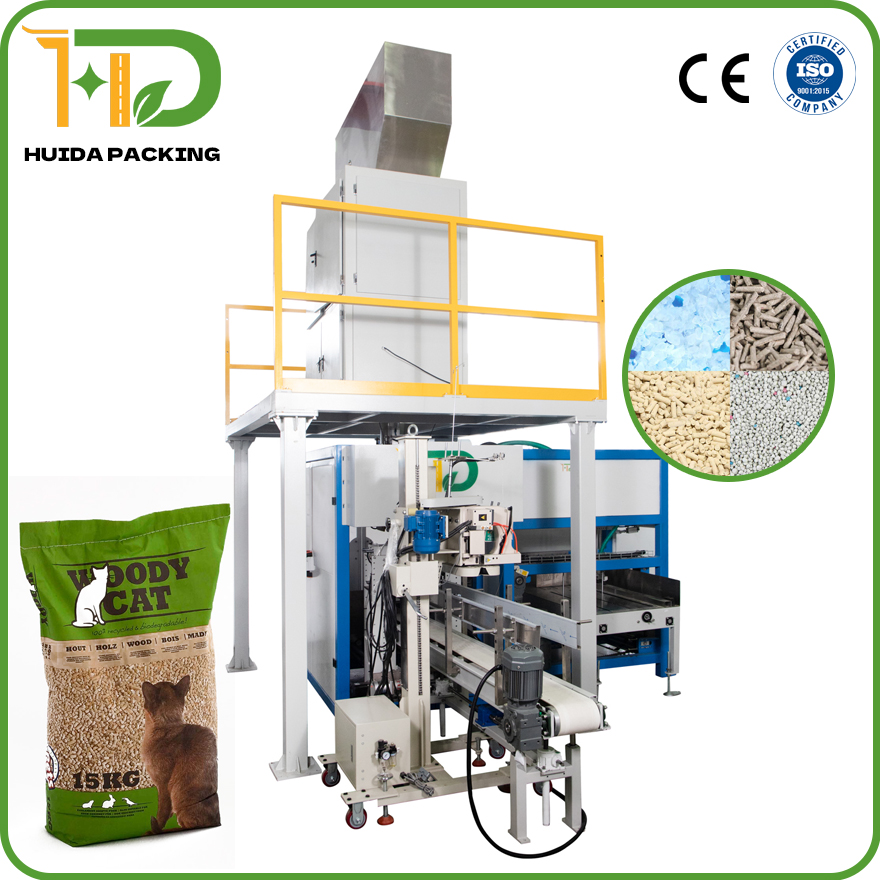

Precision Heavy-Duty Packing for Industrial Cat Litter

Engineered specifically for 15kg-50kg bentonite cat litter, our open-mouth bag packaging system delivers unmatched efficiency in handling paper sacks and PP woven bags. Featuring servo-controlled bag manipulation and multi-stage weighing technology (±0.2% accuracy). With customizable fill heads accommodating stitch-sealed bags and rapid changeover <3 minutes, it seamlessly processes 15kg, 20kg, 25kg, and 50kg formats at speeds up to 20 bags/minute.

Factory-Direct Reliability for Global Mineral Processors

As a leading Chinese manufacturer, we provide CE-certified open-mouth baggers that reduce your total ownership cost by 35% versus European alternatives. Our machines come with:

✅ Plug-and-play integration with existing palletizing systems

✅ ATEX-compliant options for explosive dust environments

✅ AI-powered predictive maintenance reducing downtime by 40%

✅ On-site training by certified engineers

Ideal for bulk bentonite, construction minerals, and industrial granules. Request your material test - send samples for a free packaging trial report with optimized parameter recommendations. Backed by 12-month warranty and lifetime technical support from our ISO 9001-certified factory.

Working progress:

Filling and weighing machine → Automatic bag feeding &material auto filling → Bag automatic transferred by the conveyor → Auto bag Labeling and sewing → Finished bag → Palletizer

Top5-new

工厂实景图

Main Packing Equipment of Huida Packing Machine Co., Ltd-1.

IMG_20241104_110637-s IMG_20241104_110656-s IMG_20241104_110529-s 1-2 1-1 1-3

Model		GFCK-G1	GFCK-G2	GFCK-G3
Applicable scope		Granular materials(e.g.rice,miscellaneous grains,food,pet food)
Packaging weight		10-20kg	25-30kg	40-50kg
Measuring accuracy		±50g
Packaging speed		10-18 bags/min(slight variation depending on the packaging material, bag size etc.)
Bag size	Bag width(mm)	350-450	450-550	550-650
	Bag length(mm)	630-830	800-1000	900-1100
Bag material		Woven bag, Kraft bag, Composite film plastic bag
Sealing type		Woven bag: Folding/seaming Kraft bag: Heat sealing/seaming Composite film plastic bag: heat sealing

The powder packing machine is designed for filling and packaging of heavy bags of various powder materials. With an advanced control system and weighing mechanism, the machine can accurately weigh and package different types of powders, such as flour, milk powder, and chemical powders.

Model		GFCF-M	GFCF-2M
Packaging weight		20-50kg
Measuring accuracy		±50g
Way of auger filling		Vertical auger feeding	Horizontal auger feeding with scale
Packaging speed		4-5bags/min	6-8 bags/min
Bag size	Bag width(mm)	450-550
	Bag length(mm)	800-1000
Bag material		Woven bag, Kraft bag, Composite film plastic bag

The 25kg fully automatic open-mouth bag packaging machine is designed for packaging ultra-fine powder with a particle size of more than 150 microns. This machine is equipped with material air exhaust which can effectively collect the dust generated during the filling process to ensure the cleanliness of the working environment and material accuracy .

Model	GFCF25UFL
Packaging weight	25kg
Measuring accuracy:	0.5%
Way of auger filling	Horizontal auger feeding with scale (equipped with lift air exhaust system )
Packaging speed	2-4bags/min
Bag size	580-900mm ( can be design according to customer bag size )
Bag material	PE bag

Granule

This open-mouth bag granule weighing and packaging machine is specially designed for quantitative weighing and packaging of various granular materials, such as rice, grain, seeds, beans, pet food, fertilizer, etc.

Powder

The powder packing machine is designed for filling and packaging of heavy bags of various powder materials. With an advanced control system and weighing mechanism, the machine can accurately weigh and package different types of powders, such as flour, milk powder, and chemical powders.

Features

This packing unit includes one set of DT2 bucket elevator, one set of servo weighing, one set of GFCKG25 granule heavy bag packaging machine, one set of sewing/sealing machine.

This machine integrates the functions of feeding, weighing, filling, bag-feeding, bag-opening, conveying, sealing/sewing, etc.

The machine has good sealing performance and can meet customer’s hygienic requirements.

All the electrical components and control components adopt local and foreign well-known brands with reliable performance, such as Siemens PLC and touch screen, Delta converter and servo motor, Schneider and Omron electrical components, etc. Man-machine dialogue platform, both the operator and debugging personnel can set parameters through the touch screen.
