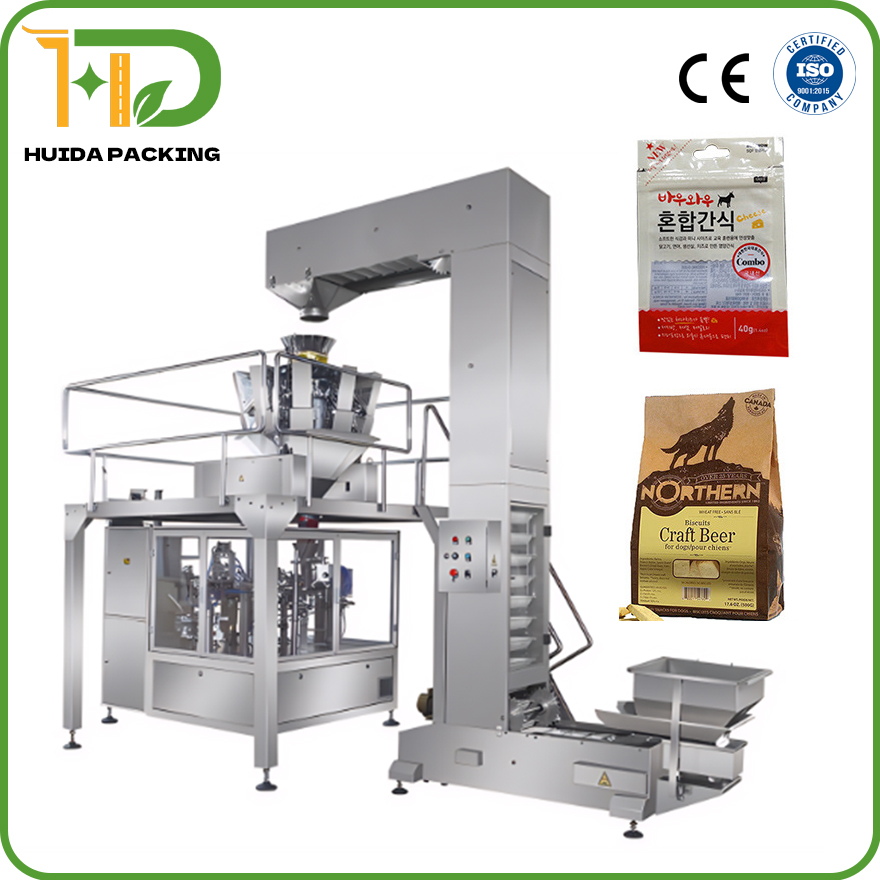

Granular solid automatic metering and packaging production line
Scope of application:
This production line is mainly composed of bag-feeding fully automatic packaging machine, combination scale, Z-type elevator and working platform. It is suitable for automatic metering and packaging of large particles and irregular blocks such as candy, nuts, raisins, peanuts, melon seeds, nuts, potato chips, chocolate, biscuits, etc.
Optional configuration:
1. Computer combination scale
2. Material elevator
3. Working platform
4. Vibration mechanism
5. Exhaust/inflation mechanism
6. Pressing mechanism
7. Horizontal bag feeding mechanism
8. Metal detector
9. Weight sorting scale
10. Finished product conveyor
11. Material sorting tray
12. Lower bag opening mechanism
13. Zipper opening mechanism
14. Zipper closing mechanism
15. Lower desiccant/deoxidizer mechanism
Main performance and characteristics:
1. Wide packaging range: Applicable to particles and blocks of various shapes, states and properties;
2. Easy operation: PLC control is adopted, The human-machine interface operating system makes the operation intuitive and convenient;
3. Easy adjustment: changing varieties can be completed in about ten minutes;
4. Suitable for different types of packaging bags;
5. Complete prevention system to ensure the yield rate and not waste bags and materials;
6. The packaging part of the machine is made of stainless steel to ensure the hygiene and safety of the materials;
7. High degree of automation: unmanned operation is achieved in the whole process of weighing and packaging, and automatic alarm will be issued in case of failure;
8. Some imported engineering plastics are used, no refueling is required, and pollution to materials is reduced;
9. Oil-free vacuum pump is used to avoid pollution of the production environment.
Huida Packing Pouch Filling Sealing Doypack Powder Packing Zipper Premade Giving Bag Packaging Machine
Rotary premade pouch fill and seal packing machine combines with auger/agitator feeder system,30-50L fillers, lifting conveyor, Suitable for preformed bag powder packing , such as milk powder, flour, coffee powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar, walnut powder, starch, spices, enzymes, fertilizer, pesticide, etc., which need the high accuracy weight and fragile bulk packaging.
Powder Rotary Premade Pouch Packaging Machine.
In recent years, standing pouch packaging machines have gradually occupied a dominant position in the packaging market. Many advantages of the premade bag, such as excellent appearance, portable filling and sealing, and material and labor cost savings, make it the first choice of consumers. Premade pouch provides manufacturers with more packaging options, material handling methods, and fully automated solutions. Premade pouch can be a flat pouch, flat bottom pouch, gusset pouch, or stand-up pouch with or without a zipper.
Option parts:
1.Multi-head combination weigher: Suitable for the quantitative packaging of a variety of irregular materials, such as snack foods (potato chips, rice crackers, candies), nuts (walnuts, pistachios, hazelnuts, etc.), frozen foods (dumplings, shrimp, frozen vegetables), and various other materials with irregular shapes such as granules, chunks, balls.
2.Linear weigher: Ideal for packing uniform specific gravity materials that are small in particle size and weigh more than 1kg, such as rice, beans, salt, white sugar, and other similar materials.
3.Volumetric cups filler: Suited for packing uniform specific gravity materials that are small in particle size and weigh less than 1kg, such as rice, beans, salt, white sugar, and other similar materials.
4.Auger filler: Designed for packing ultra-fine powders, such as rice flour, milk powder, building materials, coffee powder, seasoning powder, and toner.
5.Liquid filling pump: Perfect for packing paste materials like bean paste, paste, architectural coating, and other similar materials.
Model | Bag size mm | Metering range g | Packaging speed bags/min | Control motor |
CF6-200B
| W:100-200mm | 50-1500 | 25-45 | Can adjust bag width automatically |
CF8-200B | W:100-200mm | 50-1500 | 25-45 | 1. Can adjust bag width automatically 2. With zipper open function
|
CF6-300 | W:200-300mm | 1000-3000 | 20-40 | Can adjust bag width automatically |
CF8-300 | W:200-300mm | 1000-5000 | 20-40 | 3. Can adjust bag width automatically 4. With zipper open function |
CF6-400 | W:260-400mm | 5000-10000 | 10-20 | 1. Can adjust bag width automatically 2. Can feed bag with plastic handle |
Granular solid automatic metering and packaging production line
Scope of application:
This production line is mainly composed of bag-feeding fully automatic packaging machine, combination scale, Z-type elevator and working platform. It is suitable for automatic metering and packaging of large particles and irregular blocks such as candy, nuts, raisins, peanuts, melon seeds, nuts, potato chips, chocolate, biscuits, etc.
Optional configuration:
1. Computer combination scale
2. Material elevator
3. Working platform
4. Vibration mechanism
5. Exhaust/inflation mechanism
6. Pressing mechanism
7. Horizontal bag feeding mechanism
8. Metal detector
9. Weight sorting scale
10. Finished product conveyor
11. Material sorting tray
12. Lower bag opening mechanism
13. Zipper opening mechanism
14. Zipper closing mechanism
15. Lower desiccant/deoxidizer mechanism
Main performance and characteristics:
1. Wide packaging range: Applicable to particles and blocks of various shapes, states and properties;
2. Easy operation: PLC control is adopted, The human-machine interface operating system makes the operation intuitive and convenient;
3. Easy adjustment: changing varieties can be completed in about ten minutes;
4. Suitable for different types of packaging bags;
5. Complete prevention system to ensure the yield rate and not waste bags and materials;
6. The packaging part of the machine is made of stainless steel to ensure the hygiene and safety of the materials;
7. High degree of automation: unmanned operation is achieved in the whole process of weighing and packaging, and automatic alarm will be issued in case of failure;
8. Some imported engineering plastics are used, no refueling is required, and pollution to materials is reduced;
9. Oil-free vacuum pump is used to avoid pollution of the production environment.
Huida Packing Pouch Filling Sealing Doypack Powder Packing Zipper Premade Giving Bag Packaging Machine
Rotary premade pouch fill and seal packing machine combines with auger/agitator feeder system,30-50L fillers, lifting conveyor, Suitable for preformed bag powder packing , such as milk powder, flour, coffee powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar, walnut powder, starch, spices, enzymes, fertilizer, pesticide, etc., which need the high accuracy weight and fragile bulk packaging.
Powder Rotary Premade Pouch Packaging Machine.
In recent years, standing pouch packaging machines have gradually occupied a dominant position in the packaging market. Many advantages of the premade bag, such as excellent appearance, portable filling and sealing, and material and labor cost savings, make it the first choice of consumers. Premade pouch provides manufacturers with more packaging options, material handling methods, and fully automated solutions. Premade pouch can be a flat pouch, flat bottom pouch, gusset pouch, or stand-up pouch with or without a zipper.
Option parts:
1.Multi-head combination weigher: Suitable for the quantitative packaging of a variety of irregular materials, such as snack foods (potato chips, rice crackers, candies), nuts (walnuts, pistachios, hazelnuts, etc.), frozen foods (dumplings, shrimp, frozen vegetables), and various other materials with irregular shapes such as granules, chunks, balls.
2.Linear weigher: Ideal for packing uniform specific gravity materials that are small in particle size and weigh more than 1kg, such as rice, beans, salt, white sugar, and other similar materials.
3.Volumetric cups filler: Suited for packing uniform specific gravity materials that are small in particle size and weigh less than 1kg, such as rice, beans, salt, white sugar, and other similar materials.
4.Auger filler: Designed for packing ultra-fine powders, such as rice flour, milk powder, building materials, coffee powder, seasoning powder, and toner.
5.Liquid filling pump: Perfect for packing paste materials like bean paste, paste, architectural coating, and other similar materials.
Model | Bag size mm | Metering range g | Packaging speed bags/min | Control motor |
CF6-200B
| W:100-200mm | 50-1500 | 25-45 | Can adjust bag width automatically |
CF8-200B | W:100-200mm | 50-1500 | 25-45 | 1. Can adjust bag width automatically 2. With zipper open function
|
CF6-300 | W:200-300mm | 1000-3000 | 20-40 | Can adjust bag width automatically |
CF8-300 | W:200-300mm | 1000-5000 | 20-40 | 3. Can adjust bag width automatically 4. With zipper open function |
CF6-400 | W:260-400mm | 5000-10000 | 10-20 | 1. Can adjust bag width automatically 2. Can feed bag with plastic handle |
