VFS-POWDER
HUIDA

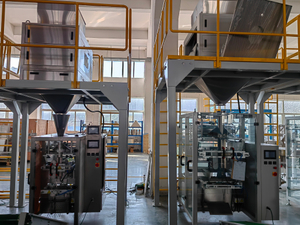

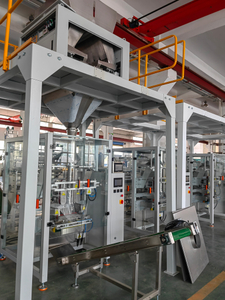

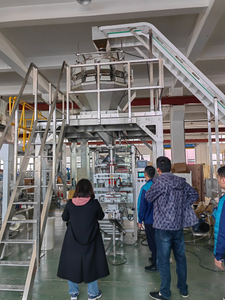

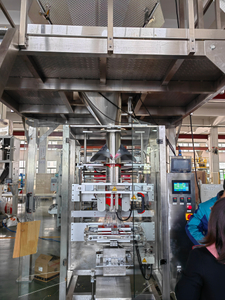

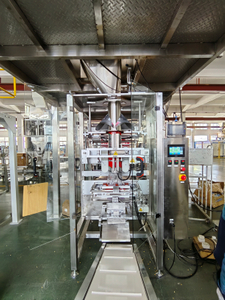

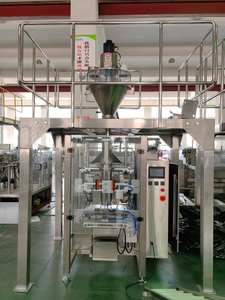

Automatic powder packaging unit – pillow bag &gusset bag with hole punching
This unit is a combination of a CJSL2000 auger weighing machine and a 5000D/5000B/7300B/1100 vertical filling packaging machine, designed specifically for measuring and packaging ultrafine powders that tend to generate heavy dust during the process. It offers a range of functions including metering, bag-making, packaging, sealing, printing, and counting. Additionally, the machine comes equipped with advanced level switches and can be fitted with anti-static and dust extraction devices for optimal performance. This unit provides an effective solution for fully automatic packaging of powdery materials, such as rice flour, milk powder, building materials, coffee powder, seasoning powder, and toner.
Type of bag: pillow bag, gusset bag and die cut bag
Model | Bag-making size mm | Metering range g | Measuring accuracy | Packaging speed bags/min |
VFS5000D | (80~300)×(80~200) | 100-1000 | ≤100g accuracy ≤±2%, 100~500g accuracy ≤±1%, ≥500g accuracy ≤±0.5% | 20-50 |
VFS5000B | (100~350)×(100~250) | 1000--2000 | 15--50 | |
VFS7300B | (100~460)×(100~350) | 1000-5000 | 10--40 | |
VFS1100 | (300-650)x(300-500) | 3000-10000 | 5~20 | |
VFS1500 | (200~1000)×(350~750) | 5~20kg | 3~10 |
