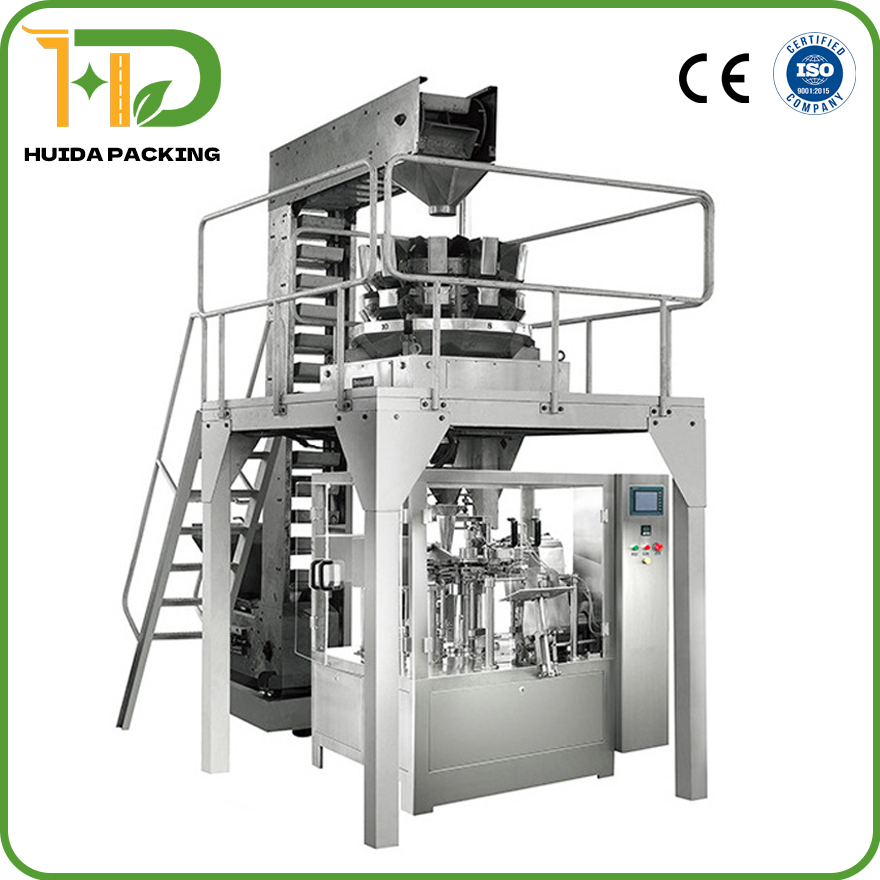

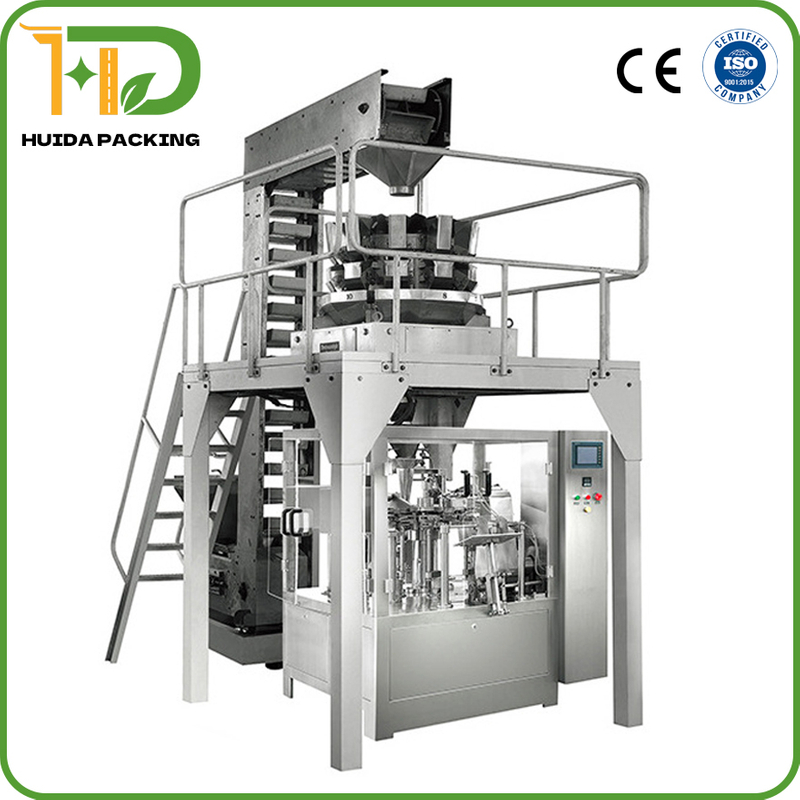

Rotary Packing Machine Form-Fill-Sealing Systems with Rotary Bagger, 10 Head Weigher Pre-Made Pouch Packaging Line

The fully automatic multifunctional bag-feeding granule/solid metering and packaging machine is mainly composed of a bag-feeding fully automatic packaging machine, a combination scale, a Z-type elevator, and a working platform. It is suitable for automatic metering and packaging of large particles and irregular blocks such as candy, nuts, raisins, peanuts, melon seeds, kernels, potato chips, chocolate, biscuits, etc.

Standard configuration:

1. PLC control system

2. Pneumatic components

3. Temperature control system

4. Vacuum pump

5. Output device

Optional configuration:

1. Rotary packaging machine

2. Computer combination scale

3. Material hoist

4. Working platform

5. Vibration mechanism

6. Exhaust/inflation mechanism

7. Pressing mechanism

8. Horizontal bag feeding mechanism

9. Metal detector

10. Weight sorting scale

11. Finished product conveyor

12. Material sorting tray

Main functions:

1. Reduce production and management costs: One packaging line reduces 4-10 workers, and the investment cost can be recovered within 1-2 years;

2. Improve product grade: The product meets the unified standard in appearance and packaging quality.

3. Reduce the defective rate, and the finished product rate reaches more than 99.5%, avoiding the waste of manual packaging;

4. Improve the hygiene standard: There is no direct contact with people during the packaging process to avoid human pollution.

5. The use of multi-head combination scale for accurate measurement can avoid excessive raw materials, save raw materials and save costs.

Main performance and features:

1. Wide range of packaging: suitable for particles and blocks of various shapes, states and properties;

2. Easy to operate: PLC control and human-machine interface operating system are adopted to make the operation intuitive and convenient;

3. Easy adjustment: the replacement of varieties can be completed within about ten minutes;

4. Suitable for different types of packaging bags;

5. Perfect prevention system to ensure the yield rate and not waste bags and materials;

6. The packaging part of the machine is made of stainless steel to ensure the hygiene and safety of the materials;

7. The fully automatic multi-functional bag-feeding particle/solid metering and packaging machine has a high degree of automation: unmanned operation is realized in the whole process of weighing and packaging, and automatic alarm is triggered in case of failure;

8. Some imported engineering plastics are used, no refueling is required, and the pollution to the materials is reduced;

9. Oil-free vacuum pump is used to avoid pollution of the production environment.

Huida Packing Pouch Filling Sealing Doypack Powder Packing Zipper Premade Giving Bag Packaging Machine

Rotary premade pouch fill and seal packing machine combines with auger/agitator feeder system,30-50L fillers, lifting conveyor, Suitable for preformed bag powder packing , such as milk powder, flour, coffee powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar, walnut powder, starch, spices, enzymes, fertilizer, pesticide, etc., which need the high accuracy weight and fragile bulk packaging.

Powder Rotary Premade Pouch Packaging Machine.

In recent years, standing pouch packaging machines have gradually occupied a dominant position in the packaging market. Many advantages of the premade bag, such as excellent appearance, portable filling and sealing, and material and labor cost savings, make it the first choice of consumers. Premade pouch provides manufacturers with more packaging options, material handling methods, and fully automated solutions. Premade pouch can be a flat pouch, flat bottom pouch, gusset pouch, or stand-up pouch with or without a zipper.

Option parts:

1.Multi-head combination weigher: Suitable for the quantitative packaging of a variety of irregular materials, such as snack foods (potato chips, rice crackers, candies), nuts (walnuts, pistachios, hazelnuts, etc.), frozen foods (dumplings, shrimp, frozen vegetables), and various other materials with irregular shapes such as granules, chunks, balls.

2.Linear weigher: Ideal for packing uniform specific gravity materials that are small in particle size and weigh more than 1kg, such as rice, beans, salt, white sugar, and other similar materials.

3.Volumetric cups filler: Suited for packing uniform specific gravity materials that are small in particle size and weigh less than 1kg, such as rice, beans, salt, white sugar, and other similar materials.

4.Auger filler: Designed for packing ultra-fine powders, such as rice flour, milk powder, building materials, coffee powder, seasoning powder, and toner.

5.Liquid filling pump: Perfect for packing paste materials like bean paste, paste, architectural coating, and other similar materials.
